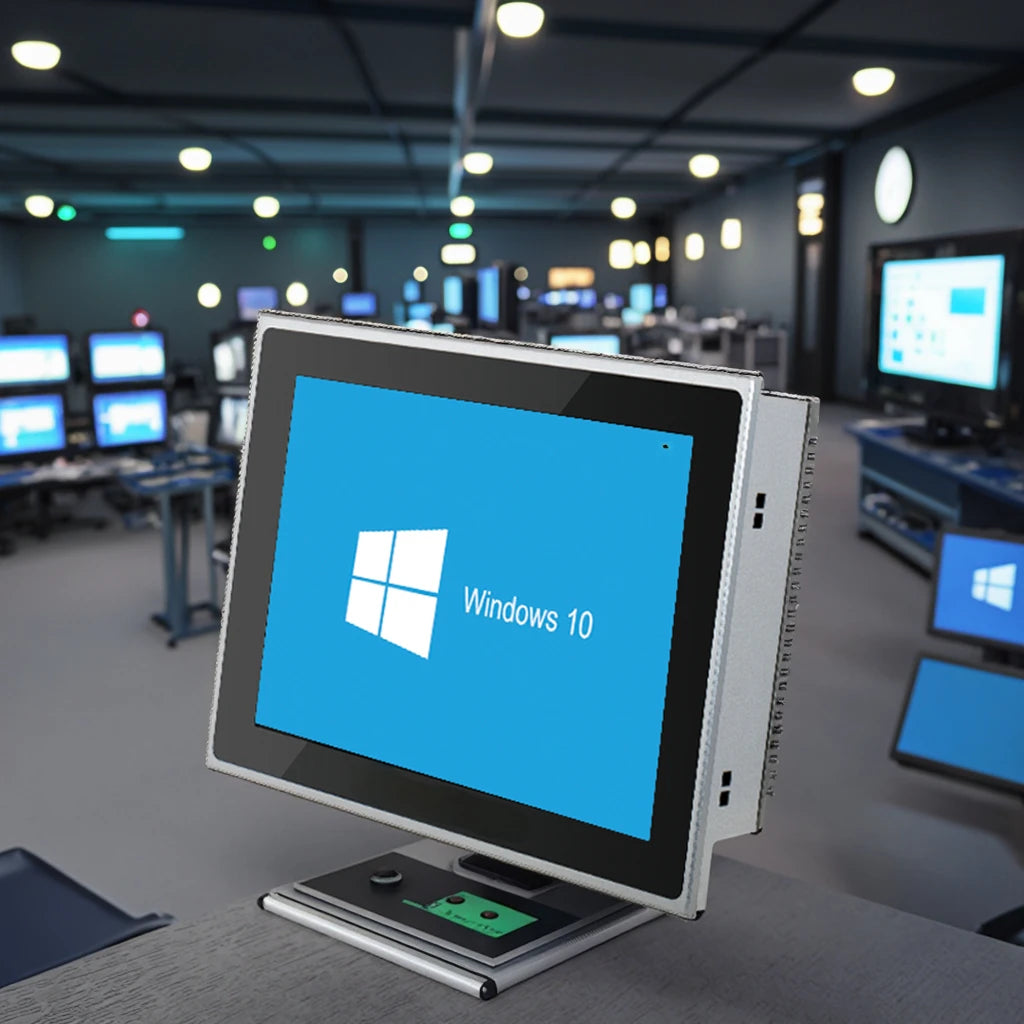

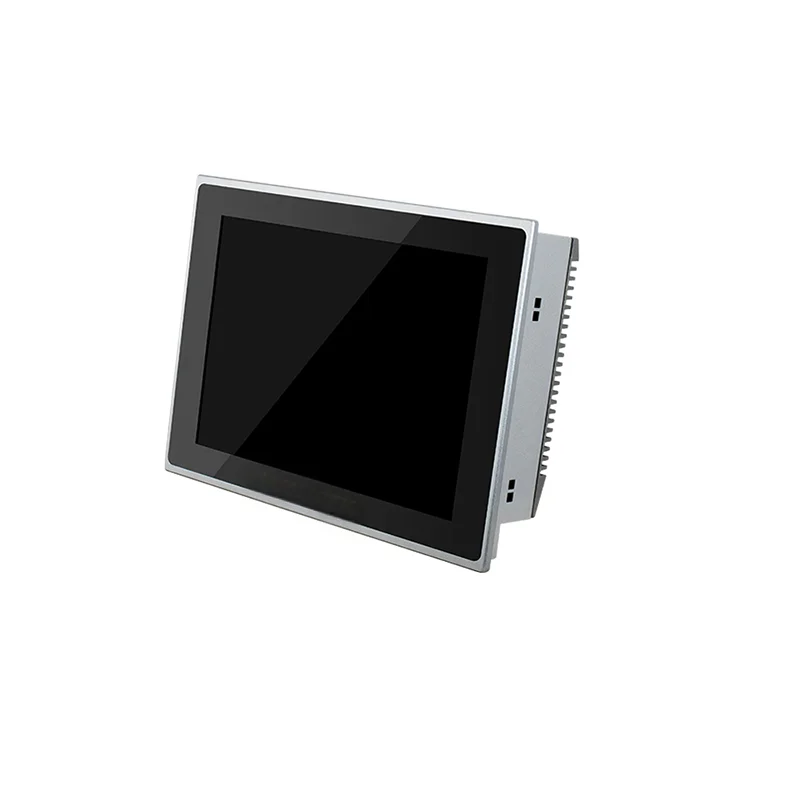

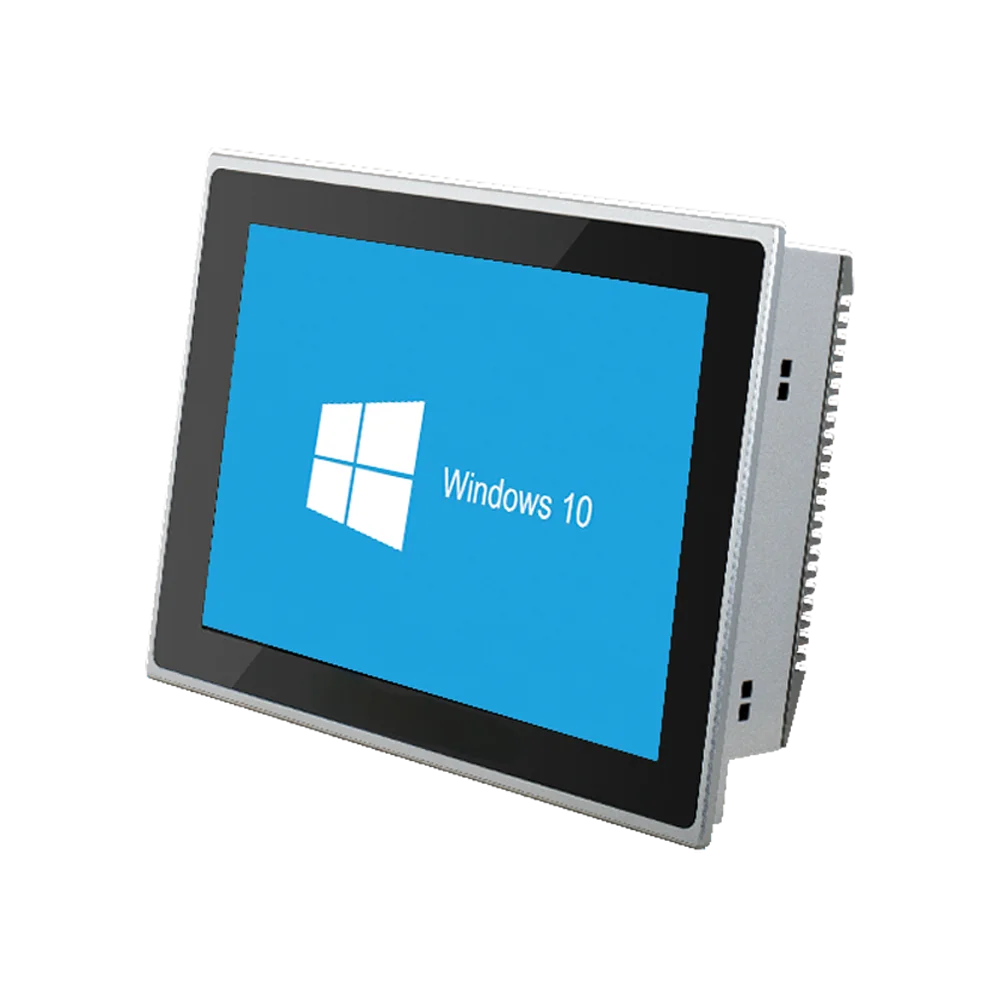

Touch screen mini computer - 10-point capacitive all-in-one machine, fanless design

$510.74
$510.74
$510.74
Default Title

    More information

    View images

    Product Details

    SPECIFICATIONS

    Brand Name: NONE

    High-concerned chemical: none

    Material: Aluminium-copper Alloy

    Origin: Mainland China

    Type: Other

    Display size
    10.4 inches
    Resolution
    1024*768
    Brightness
    300cd/m2
    Viewing angle
    80/80/80/80
    Contrast ratio
    1000:1
    Touchscreen
    Multi-point capacitive screen / Single-point resistive screen
    Number of touches
    30,000,000times/5,000,000times
    processor
    Intel 8th~12th Gen Celeron or Core (i3/i5/i7) processor onboard Low-power CPU
    operating system
    Windows 7/8/10/Linux/Android
    Memory
    DDR3/DDR4 2*SO-DIMM,Up to 16GB
    storage
    M.2(Nvme)、mSATA、SATA

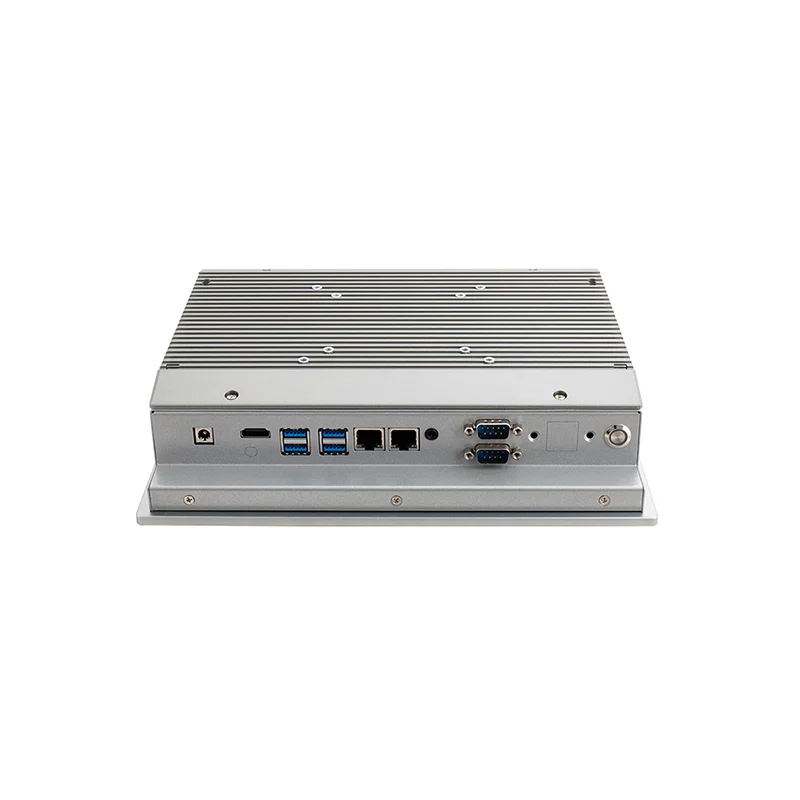

    Network port
    Up to 4*intel GbE
    serial port
    Up to 4*RS232/485
    show
    1*VGA、1*HDMI
    USB
    USB3.0/USB2.0
    Audio
    1*Audio(Line-out@Mic-in 2 in 1)
    WIFI/4G
    Mini-PCIE 、M.2
    Front panel
    Aluminum

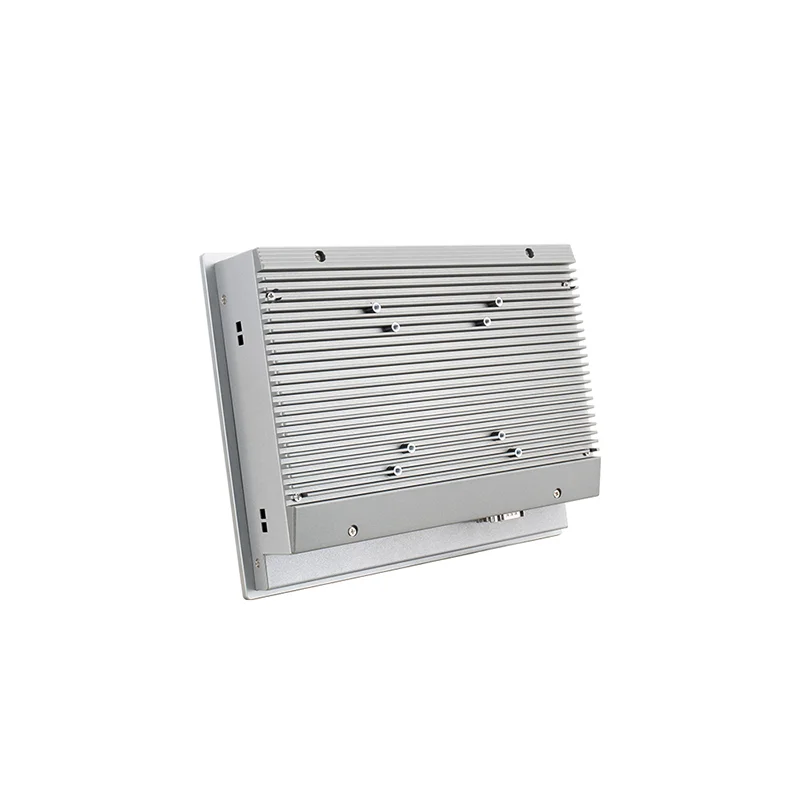

    Back panel
    aluminum alloy
    Installation method
    Panel Mount Wall and VESA-MOUNT
    Appearance size
    297*212*61mm
    Cutout size
    256*202mm
    weight
    2.7kg
    working environment
    -10℃~60℃
    Storage environment
    -20℃~75℃
    humidity
    5%~95%， Non-condensing
    Power input
    DC12V(or DC24V) @5A
    Packing size
    377*292*141mm
    Including packaging weight
    3.4-3.8KG
