SPECIFICATIONS

Brand Name: NONE

Certification: CE,RoHS

Choice: yes

High-concerned chemical: none

Origin: Mainland China

Smart home platform: Tuya

semi_Choice: yes

Product Parameters

Power Adapter:DC5V/>500mA（Type-C）

Battery Type:LR03(AAA)X2(No included)

Operating Voltage:DC3V

Standby Current:<20uA

Light Sensor:0~3500lux(0ptional)

Wireless Protocol:Wi-Fi

T&HSensor:(Optional)

OperatingTemperature: -10~55℃

Operating Humidity:<99% RH

Functions:

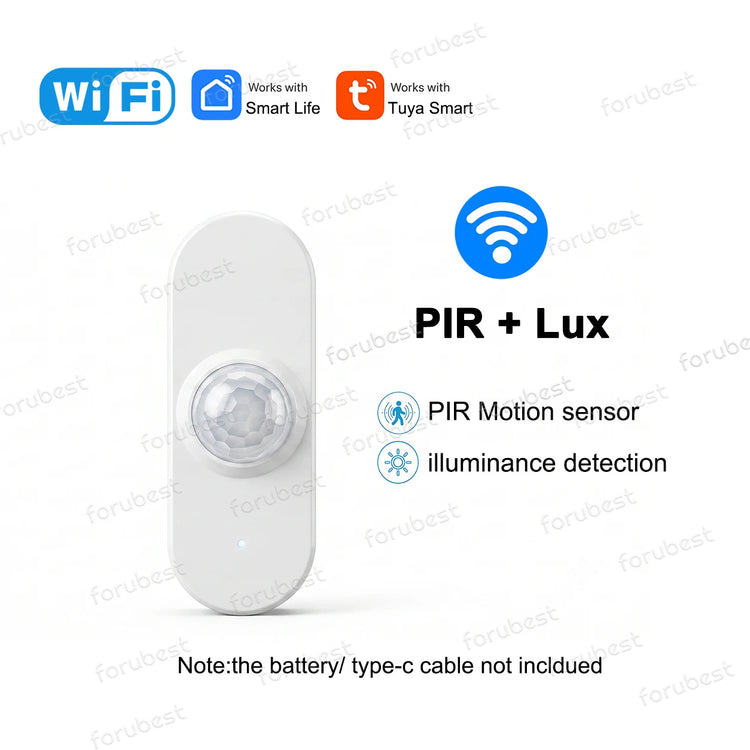

- Multi-dimensional Environment Sensor: PIR human presence + illuminance light detection, optional temperature & humidity monitoring
- Dual Power Supply: AAA battery wireless mode / Type-C wired power, auto switch without manual operation
- 5m 100° Wide-angle Detection, Fast response, detect motion & no-motion dual status
- Built-in light sensor prevents false daytime triggers, auto light linkage only works at dim environment
- Customizable delay timer: 30s up to 10 mins adjustable via APP for smart lighting control
- Full home smart linkage: works with smart lights, AC, smart plugs, security alarm system
- APP historical records with accurate timestamps for home intrusion security monitoring
- Low power standby design, came with double-sided tape, easy installation

## Detailed Description
1. More Than Ordinary Single-Function PIR Sensor
Different from basic motion detectors that only sense human movement, our upgraded sensor acts as an all-in-one intelligent environmental node. It supports real-time human activity tracking, ambient light brightness monitoring, and optional temperature & humidity reading. One device replaces multiple separate sensors to simplify your smart home layout.
2. Dual Power Design for Flexible Installation
Two power supply modes freely switch to fit all scenarios:
1. Wireless Battery Mode: Powered by 2pcs LR03 AAA batteries (batteries not included). No wiring required, ideal for rental houses, corridors, entryways without power outlets. Rechargeable batteries are NOT supported.
2. Wired Type-C Mode: DC 5V Type-C constant power supply (USB cable not included). Perfect for high-traffic areas to avoid frequent battery replacement.
When Type-C cable is connected, the battery power will cut off automatically.
### 3. Accurate Dual-State Human Motion Recognition
Equipped with premium PIR infrared probe, it supports dual-status identification: Motion Detected / No Motion Detected.
- Detect human movement instantly and trigger linked smart devices (turn lights on automatically when you walk in)
- Judge empty room after customized delay time, auto shut down connected appliances to save energy
5-meter long detection range and 100° wide coverage with ultra-fast 5-85ms response, fully covers hallways, bedrooms, living rooms and entry doors.

4. Built-in Lux Light Sensor, Avoid Unnecessary Power Waste
Real-time ambient illuminance value tracking with adjustable trigger threshold on APP.The sensor intelligently distinguishes bright daytime and dark night: it will not activate light automation under strong daylight, only start smart linkage when ambient light is dim, effectively avoid false triggers and reduce power consumption.

5. Optional Upgrade: Real-Time Temperature & Humidity Monitoring
Choose the T&H upgraded version to monitor indoor temperature and humidity simultaneously.
The device collects environmental data every 30 seconds, only upload data when temperature changes ±0.5℃ or humidity changes ±5% to save power. You can set auto-rules to link air conditioners and humidifiers for constant comfortable indoor climate.
6. Customizable Smart Delay Logic
Adjustable hold time available on APP: 30s / 60s / 120s / 240s / 300s / 10 minutes.
Create personalized logic: Lights turn on when people enter, and automatically power off after you leave for set time. Low power consumption design extends battery service life greatly.
7. Night Intrusion Security & APP History Logs
All human activity events will be recorded on your mobile APP with precise timestamps. You can check historical motion records remotely anytime, even when you are out of home. If abnormal human movement is detected at night, it supports triggering security alarm to guard your house.
8. Whole-Home Smart Automation Linkage
Create various intelligent scenes via APP:
- Entryway: Auto turn on lights once human motion detected
- Corridor: Motion-triggered automatic night lighting
- Night security mode: Activate alarm when unauthorized intrusion happens
- Environment control: Auto adjust AC/humidifier based on temperature & humidity data
Compatible with smart bulbs, air conditioners, smart sockets and home security alarm systems to build a fully automatic smart house.
9. Easy Installation & Stable Performance
Comes with double-sided adhesive tape for hole-free wall mounting.

## Packing List
1 × PIR Motion Sensor
1 × Double-sided Adhesive Tape
1 × User Manual
## Warm Tips
1. AAA batteries and Type-C USB cable are NOT included in the package
2. Rechargeable batteries are not applicable for battery power mode
3. T&H monitoring function only available for (PIR With Lux TH) version
4. When connected with Type-C power, battery will stop working automatically
